Paindlikud päikesepaneelid - JINGYANG 95W ja 110W ETFE monokristallilised päikesepaneelid
€ 91,52 – € 272,35
- Kõrge tõhususega päikesepatareid: Need paindlikud päikesepaneelid on valmistatud monokristallilisest ränist ja saavutavad kuni 24% kasuteguri, mis maksimeerib energiatootmise.
- Mitmekülgne ja vastupidav disain: Ideaalsed erinevateks rakendusteks, sealhulgas matkaautodeks, paatidesse ja telkimiseks, tänu nende kergele ja paindlikule disainile, mis kohandub kumeratele pindadele.
- ETFE-kate: Omab vastupidavat Jaapani ETFE-kilekatet, mis tagab suurepärase korrosioonikindluse ja kõrge temperatuuri taluvuse, mille eluiga on üle 8-10 aasta.
- Ilmastikukindel: Paneelid on veekindlad, lumekindlad ja vastupidavad väikestele rahetele, tagades usaldusväärse toimimise erinevates ilmastikutingimustes.

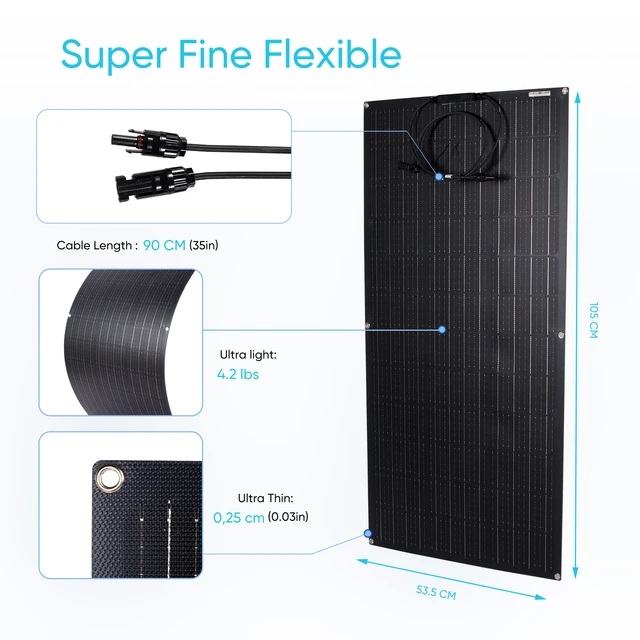

- Lihtne paigaldamine: Komplektis on eelpaigaldatud möödavooludioodid ja 900 mm pikkused kaablid koos pistikutega ning kuus puurauku kiireks paigaldamiseks.
- Mitmesugused toitevõimalused: Saadaval 95W ja 110W konfiguratsioonides, mis sobivad akude laadimiseks ja võrguühenduseta rakendusteks.
- Tehnilised kirjeldused: 1050mm x 535mm x 2,5mm mõõtmetega, maksimaalse toitepinge 19,50V ja maksimaalse süsteemipingega DC1000V.
The JINGYANG Paindlikud päikesepaneelid pakuvad tõhusat ja mitmekülgset lahendust päikeseenergia kasutamiseks, mistõttu on need suurepärane valik nii vaba aja veetmise kui ka elamute jaoks.
Harness the power of the sun with JINGYANG Paindlikud päikesepaneelid. These high-efficiency solar panels are designed for versatility and durability, making them the perfect choice for a variety of applications, including motorhomes, camping, boats, and residential energy solutions. With a sleek design and advanced materials, the ETFE Monocrystalline Solar Cells deliver exceptional performance while remaining lightweight and easy to install.
Põhijooned
- Kõrge tõhususega päikesepatareid: The panels are made with monocrystalline silicon, achieving module efficiencies of up to 24%, ensuring you get the most energy from every ray of sunlight.

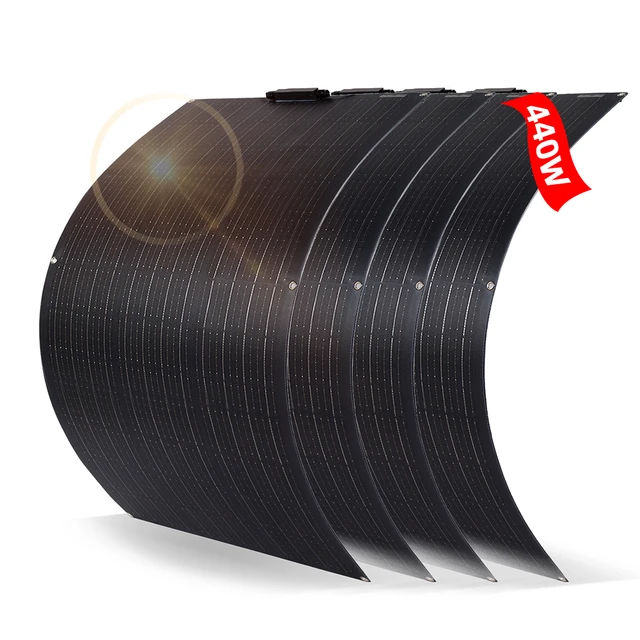

- Flexible Design: These flexible solar panels can conform to various surfaces, making them ideal for curved roofs of RVs, boats, and other outdoor applications.
- Durable ETFE Coating: The Japan ETFE film coating provides excellent corrosion resistance, high-temperature tolerance, and long-lasting durability, with a service life of over 8-10 years.

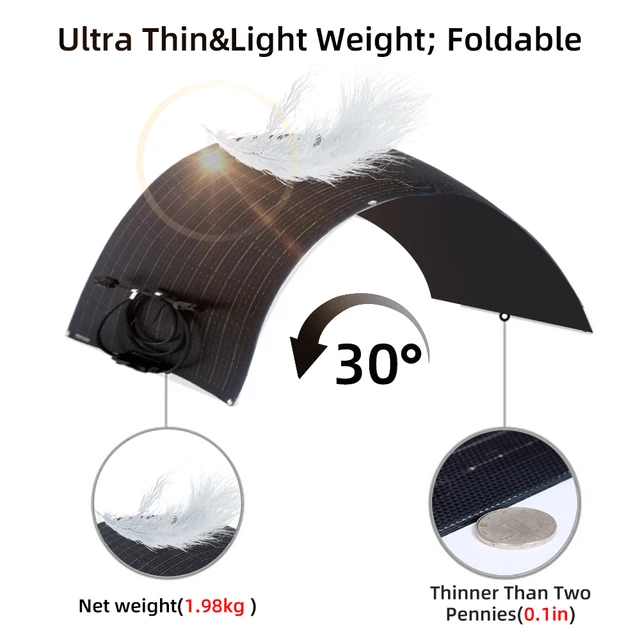

- Lightweight and Compact: With dimensions of 1050mm x 535mm x 2.5mm and weighing only 1.95kg, these panels are easy to handle and install without adding unnecessary weight to your setup.
- Ilmastikukindel: The panels are waterproof, snowproof, and resistant to small hail, ensuring reliable performance in various weather conditions.
- Lihtne paigaldamine: Each panel comes pre-installed with by-pass diodes, 900mm cables with connectors, and six drill holes for quick and easy mounting.
- Mitmesugused toitevõimalused: Available in 95W and 110W configurations, these panels can be customized to suit your energy needs, making them perfect for battery charging and off-grid applications.
Tehnilised kirjeldused
- Model Numbers: ETFE 32-95, ETFE 32-110
- Maximum Power (Pmax): 95W or 110W (±3%)
- Maximum Power Voltage (Vmp): 19.50V
- Maximum Power Current (Imp): 5.60A
- Open-Circuit Voltage (Voc): 23.4V
- Short-Circuit Current (Isc): 6.10A
- Nominal Operating Cell Temperature (NOCT): -45 to 80℃
- Maximum System Voltage: DC1000V

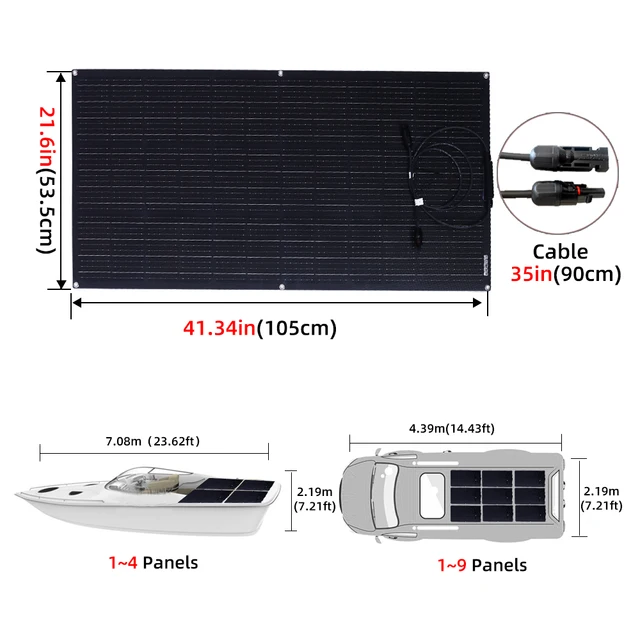

- Mõõdud: 1050mm (L) x 535mm (W) x 2.5mm (H)
- Package Weight: 1.95kg
- Garantii: 1 year, with an expected lifespan of 8-10 years
Järeldus
The JINGYANG Paindlikud päikesepaneelid offer a powerful and versatile energy solution for anyone looking to harness solar power. Whether for recreational use or home energy investment, these panels provide high efficiency, durability, and ease of installation. Upgrade your energy system with JINGYANG today and experience the benefits of solar energy!
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point.
Advantages of JINGYANG ETFE Solar Panels
Stronger Box Package, sturdy and durable, good heat dissipation. No hot spots will appear.
Japan ETFE Film Coating is corrosion resistant, Bear Higher Temperature; Higher Efficiency and is suitable for both indoor and outdoor use.
With a service life of more than 8-10 years, it is Very Thin And Durablle With Less Weight. It is the best choice for motorhomes and Camping, Boat, Marine, RV, Bus Car Roof. It has a very high cost performance and is the best choice for home energy investment Or Outdoor Usage.
Toote kirjeldus:
The surface is Total Japan ETFE Film Coating, waterproof, snowproof, resistant to small hail.
By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with connectors comes with the panel automatically, Cable Length with About 900MM
The back has 6 drill holes that can be quickly installed
Model: ETFE 32-110
Material: Monocrystalline silicon
Maximum Power(Pmax):110W±3%
Maximum Power Voltage(Vmp):19.50V
Maximum Power Current (Imp):5.60A
Open-Circuit Voltage (Voc): 23.4V
Short-Circuit Current (Isc):6.10A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A
Solar Cell: 33pcs 166mm*90.5mm; 12BB Solar Cell or
36pcs 166mm*83.5mm; 12BB Solar Cell （randomly shipment）
Dimension:1050MM(L)*535MM(W)*2.5mm(H) Equal To 41.33Inch(L)*21.06inch(W)*0.09inch（H）
Package Weight:1.95kg
Package Dimension:1080MM*570MM*40MM
(Ülaltoodud andmed põhinevad labori standardkatsekeskkonnal)
For field connections,use minimun No.13AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）
1 Years Warranty, 8-10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。
Flexible Solar PanelsFlexible Solar PanelsFlexible Solar PanelsFlexible Solar PanelsFlexible Solar Panels
| Kuskohast tarne: | Hiina, Tšehhi Vabariik, Prantsusmaa, SAKSAMAA, Poola, Venemaa Föderatsioon, HISPAANIA, Ühendkuningriik |
|---|---|
| Higni murelik keemia | Urethane (Ethyl carbamate) |
| Module Efficien | 24% |
| on_kohandatud | Jah |
| Max. Power | 95w OR 110W |
| Number of Cells | 33 |
| Suurus | 1050MM*535MM*2.5MM |
| Materjal | Monokristalliline räni |
| Mudeli number | ETFE 32-95; ETFE 32-110 |
| Nominal Capacity | 95w OR 110W |
| Foldable Solar Panel | Ei |
| Flexible Solar Panel | Jah |
| Number of Panels | 1 |
| Tüüp | Päikesepaneel |
| Brändi nimi | JINGYANGPV |
| Päritolu | Mandri-Hiina |
| solar panel, solar panel 90w | flexible solar panel, Monocrystalline Silicon |
| solar panel solar cell, solar charger | solar panel 12v solar battery |
| solar panel solar cell | solar panel 90w OR 110W |
| Värv | 110w solar panel, 220 W ETFE paneel, 330 W ETFE paneel, 330w solar system, 440w solar panel |
12 arvustust tootele Flexible Solar Panels – JINGYANG 95W and 110W ETFE Monocrystalline Solar Cells
Arvustust saavad kirjutada ainult need sisseloginud kasutajad, kes on antud toote ostnud.
The charge marveled at the station, if you charge a double-watt charge.
Yakshchi panels to hang on the vikny of the All-Union, a maximum of 91 Watts with a direct dream. Without a direct Sonza (Abo coli xmarta) pishe 0 Watt, ale Blima Sho charge Yde.
If vivisiv paneli zzzovni, having grilled over the slope to get used to Bagato Energiya. The maximum tension on the bachiv 167 T on a direct dream, and if the sonce on the side of the house is on the side of the house, then I will show 5-20 W (svelo vidbivaedd yaskravikh budinkiv).
The same-the pressure of the panels to strongly lay the way of the Kuta PID like the panels, the vid of the sky, the vid sstkod (the Cross of the sstkoda), the vid dovzhini cable.
I think that the Yakshchi panels of the news and the fact that I want to know about 45 degrees, then we will reduce the result.
That scho is written 110 T on the panel then the Mabut of the laboratory and the vimiyuvannya, if you drive the lamps of the panel and leave the pressure right from the panel without a cross-code.
A slightly smaller USB converter for charging of Vid panels.
First impressions are excellent, after all my test load measurements and after a two-weeks of use
seems that they have aprox. 25% enhanced, higher efficiency compared to my (not so !! )
old previous flexible panels. I finally found and bought a keeper !!!
Many thanks to seller, my best recommendation !!
Dobr panel but Tova on the shot Coeto from E max!
