Compatible-to-MPPT solar controller regulator 20A 30A 40A 12V/24V
€ 35,02 – € 49,51
Compatible-to-MPPT solar controller regulator 20A 30A 40A 12V/24V
Introducing our MPPT-compatible Solar Controller Regulator, available in 20A, 30A, and 40A for both 12V and 24V systems. Please note that while these controllers are not 100% pure MPPT, they offer an exceptional level of performance very close to pure MPPT technology.
Our T20, T30, and T40 models are tailored to function as Charger Controllers, Voltage Controllers, Lighting Controllers, and Solar System Controllers, providing reliable and efficient solutions for a variety of solar power applications.
Manufactured with excellence in Mainland China, these high-quality solar controller regulators combine MPPT and PWM technologies, delivering a remarkable increase in charging efficiency, up to 30% higher than ordinary controllers, along with standby energy-saving features, consuming only 10mA-15mA in standby mode.
Only logged in customers who have purchased this product may leave a review.
Compatible-to-MPPT solar controller regulator 20A 30A 40A 12V/24V
- is_customized: Yes
- Maximum Current: 20A 30A 40A
- Model Number: T20 T30 T40
- Application: Charger Controller, Voltage Controller, Lighting Controller, Solar System Controller, Solar Working Station
- Origin: Mainland China
Note: It is high quality compatible MPPT + PWM Solar Controllers, not 100% pure MPPT
Please contact us for checking more details if needed.
Thank you.
40A T40Solar Charge Controller Dual timer
This is a compatible MPPT charge controller PWM intelligent / efficient / energy saving, he not only has a efficient MPPT controller charging function to automatically track the maximum power point, 10% -30% higher than the ordinary controller charging efficiency, but also has standby energy saving, more than 30% energy than ordinary controller, the standby power consumption of only 10mA-15mA.
|
LCD screen display |
Battery reverse discharge protection |
|
Easy operation interface |
Battery reverse polarity protection |
|
MPPT+ PWM charging mode |
Battery under voltage protection |
|
Parameter user can reset Overload |
Short-circuit protection |
|
A key to restore the factory settings |
USB 5V charging ( 500mA(White) 1500mA(Sliver) for mobile phone |
|
A key to open and close the load |
Automatic temperature compensation function |

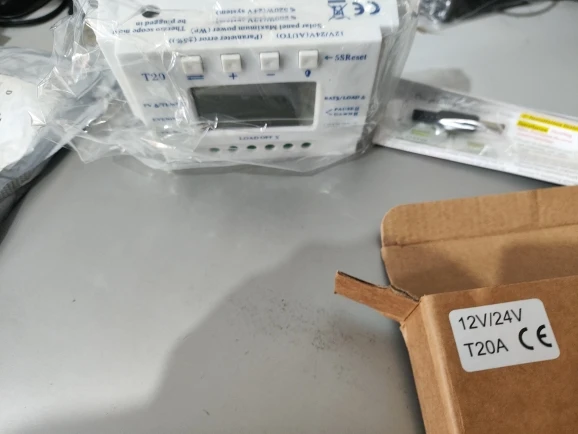

T20 20A Solar Charge Controller Dual timer
This is a three-time controller into the evening working time,an interval of rest of pause time,Dawn working time(morning light function), the user can according to their needs,set a different time
Dual Timer function
Specification for solar controller regulator
|
Parameters / Model |
T10 |
T20 |
T30 |
T40 |
||
|
Maximum power current |
12A |
20A |
30A |
40A |
||
|
Installation Lin(mm2) |
4mm2 |
8mm2 |
10mm2 |
12mm2 |
||
|
Installation Line(AWG) |
10(AWG) |
8(AWG) |
7(AWG) |
6(AWG) |
||
|
Weight |
280g |
300g |
475g |
480g |
||
|
Dimensions |
143×89×46(mm) |
187*97*61(mm) |
||||
|
System load loss |
≤13mA |
|||||
|
Loop Buck |
≤100mV |
|||||
|
Battery float voltage |
13.8V(12V system)/27.6V(24V system) |
|||||
|
Battery (under voltage) protection |
10.6V(12V system)/21.2V(24V system) |
|||||
|
Battery (under voltage) recovery voltage |
12.6V(12V system)/25.2V(24V system) |
|||||
|
Charge mode |
MPPT+PWM MODE |
|||||
|
Operating Temperature |
-10°C~60°C |
|||||
|
Storage Temperature |
-30°C~70°C |
|||||
|
Humidity requirements |
≤90%, No condensation |
|||||
|
Temperature compensation |
-4mV/Cell/°C |
|||||
|
Temperature Probe (built components) |
NTC 100K thermistats |
|||||
|
Maximum open circuit voltage of the solar panel |
18V-24V(12V system)36V-48V(24V system) |
|||||
|
Solar panels maximum open circuit voltage (V) |
≤48V |
|||||
(Cases) 12V system standard configuration
