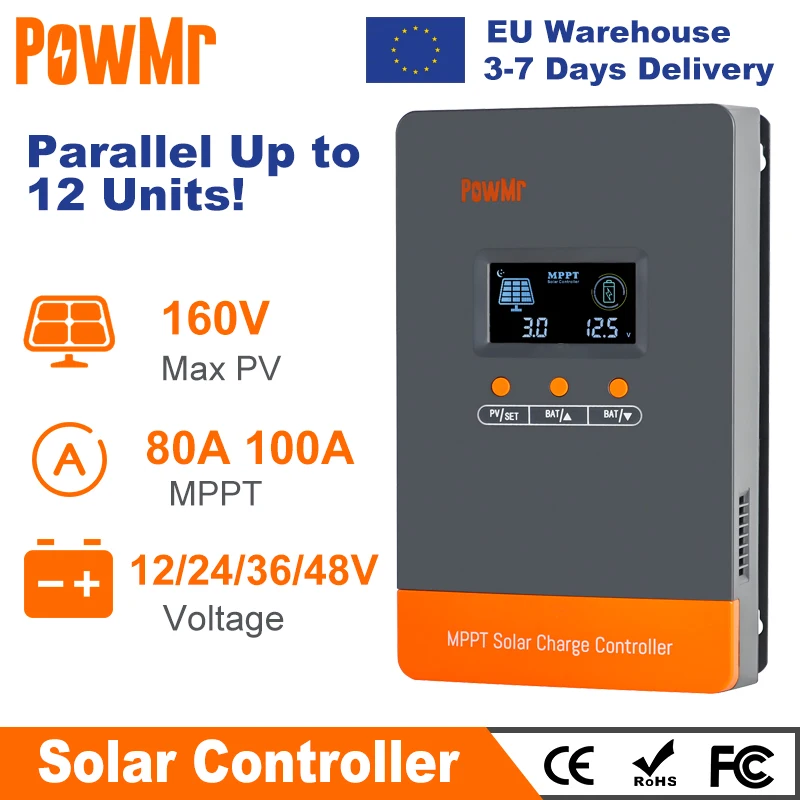

PowMr MPPT Solar Charge Controller 100A 80A for 12V/24V/36V/48V
€ 169,29 – € 242,50
The PowMr MPPT Solar Charge Controller is engineered for efficient management of solar energy across multiple voltage systems, including 12V, 24V, 36V, and 48V. Available in two models—80A (POW-M80-PRO) and 100A (POW-M100-PRO)—this controller features a maximum photovoltaic (PV) input voltage of 160V. It utilizes advanced Maximum Power Point Tracking (MPPT) technology to optimize energy collection from solar panels.
Key specifications include:
- Battery Voltage Range: 9-60V, compatible with various battery types such as sealed, vented, gel, NiCd, and lithium.
- Efficiency: MPPT efficiency exceeds 99%, ensuring maximum energy harvest.
- Environmental Durability: IP32 enclosure rating, operational temperature range of -35°C to +45°C, and humidity tolerance of up to 95% (non-condensing).
The PowMr controller supports parallel connections for up to 12 units, allowing for scalability in larger solar systems. Its customizable features enable users to tailor the functionality to meet specific needs, making it an ideal choice for optimizing solar power management in a variety of applications.
The PowMr MPPT Solar Charge Controller 100A 80A is designed to efficiently manage solar energy across multiple voltage levels. Below are the key features and specifications of this product:
Key Features:
- Voltage Compatibility: Supports 12V, 24V, 36V, and 48V systems.
- Model Options:
- POW-M80-PRO: 80A charging capacity.
- POW-M100-PRO: 100A charging capacity.
- Maximum PV Input Voltage: Up to 160V, capable of handling significant energy loads.
Charging Technology:
- MPPT Technology: Utilizes Maximum Power Point Tracking to optimize energy collection from solar panels.
- Three-Stage Charging Algorithm: Enhances battery performance and longevity by adapting to different battery types, including:
- Sealed
- Vented
- Gel
- NiCd
- Lithium
- Battery Voltage Range: 9-60V.
- MPPT Efficiency: Exceeds 99%, ensuring maximum energy harvest.
Environmental Specifications:
- Enclosure Rating: IP32, suitable for various environmental conditions.
- Operating Temperature Range: -35°C to +45°C.
- Humidity Tolerance: Up to 95% (non-condensing).
- Dimensions:
- POW-M80-PRO: 260 x 180 x 75 mm.
- POW-M100-PRO: 315 x 195 x 80 mm.
- Net Weight:
- POW-M80-PRO: 2 kg.
- POW-M100-PRO: 2.7 kg.
Installation and Customization:
- Customizable Features: Users can tailor functionality to meet specific requirements.
- Parallel Connection Support: Allows for connection of up to 12 units, providing scalability for larger systems.
- Installation Instructions: Detailed guidance is included for setting up parallel connections, ensuring seamless integration into existing solar energy systems.
The PowMr MPPT Solar Charge Controller 100A 80A is a reliable solution for optimizing solar power management across various applications, making it suitable for both residential and commercial use
|
Models |
POW-M80-PRO |
POW-M100-PRO |
|
Solar Input Specification |
||
|
Max. Solar Array Open-Circuit Voltage |
160V |
|
|
Maximum Input Power |
For 12V System(960W)
For 24V System(1920W)
For 36V System(2880W)
For 48V System(3840W)
|
For 12V System(1200W)
For 24V System(2400W)
For 36V System(3600W)
For 48V System(4800W)
|
|
Battery Charging Specification |
||
|
Charging Technology |
MPPT |
|
|
Charging Algorithm |
3 Stages |
|
|
Charging Algorithm |
12V/24V/36V/48V |
|
|
Battery Voltage Range |
9~60V |
|
|
Rated Charging Current |
80A |
100A |
|
Maximum Efficiency |
≤98% |
|
|
MPPT Efficiency |
>99% |
|
|
Temperature Compensation |
-3mV/°C/2V（default） |
|
|
Self-Consumption |
44mA/12V; 26mA/24V; 18mA/36V; 12mA/48V |
|
|
Environment Specification |
||
|
Operating Temperature Range |
-35°C~+45°C |
-35°C~+45°C |
|
Humidity Range |
≤95%，Non-condensing |
≤95%，Non-condensing |
|
Altitude |
<3000m |
<3000m |
|
General Specification |
||
|
Protection Level |
IP32 |
|
|
Dimensions |
260x180x75mm |
315x195x80mm |
|
Net Weight |
2KG |
2.7KG |
Parallel guide:
Step 1: Install the parallel equipment at the same level, keeping a distance of at least about 75mm between the equipment
Step 2: Communication cable connection
Step 3: Connect all parallel controllers to the same battery pack in turn
Step 4: Connect each controller to its own photovoltaic array
Step 5: Once wiring is complete, power on by closing the battery circuit breaker. After starting up, please refer to Chapter 3.4 to define the master and slave machines, and then complete the related settings of the entire parallel system through the master machine.
MPPT Solar Charge Controller 100AMPPT Solar Charge Controller 100AMPPT Solar Charge Controller 100AMPPT Solar Charge Controller 100A
| Ships From | |
|---|---|
| Is Smart Device | no |
| Application | Charger Controller,Solar System Controller,Voltage Controller,Lighting Controller |
| Model Number | POW-M80-PRO/POW-M100-PRO |
| is_customized | Yes |
| Brand Name | PowMr |
| Maximum Current | MPPT 80A/100A |
| Origin | Mainland China |
| Charging mode | MPPT Maximum power point tracking automatically |
| Battery type(default is Sealed) | Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for othe |
| Rated output current | MPPT 80A/100A |
| The maximum PV input voltage (Voc) | 160V |
| Enclosure | IP32 |
| Version | PowMr 2024 |
| Current |
